CPol TV System installed at the One World Trade Center

174
0

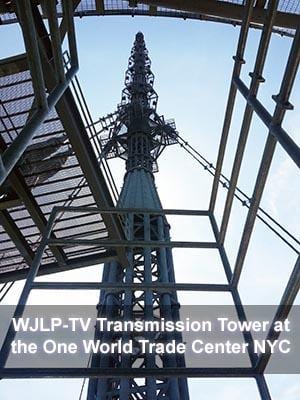

Jampro Antennas/ADBL selected to design, manufacture, and install a complete turnkey RF solution. This is for the WJLP-TV channel 3 installed on the One World Trade Center in New York City.

Circularly Polarized crossbow panel antenna along with an enormous amount of PROline Rigid line completes the RF system. Additionally, the project included the following components and services.

·     Mask Filter/RF System

·     RCPU Antenna switch frame

·     Power splitter/Patching System.

·    Installation services

The Installation

The project design had to adhere to the very strict requirements defined by the New York Port Authority. The design and layout of the rigid line feeder required extensive engineering. The feeder runs from the 90th floor to the roof top tower. In addition, an auxiliary ADBL CPOL Lambda antenna remains at 4, Time Square Building in New York City.
